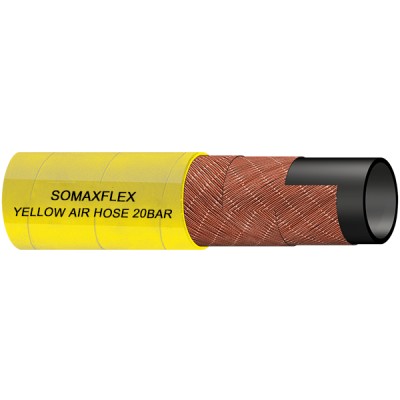

Textile Reinforced Air Hose-Wrapped Surface
Application:Soft wall hose for compressed air with light traces of oil mist, normally used for heavy duty applications in road construction sites, quarries and mines.
Temperature:From -30°C to +70°C
Tube: Black, smooth, SBR rubber, oil mist resistant.
Reinforcement:High strength synthetic cord.
Cover:yellow, smooth, (wrapped finish) long lasting EPDM rubber, weathering and ozone resistant.
Heavy Duty Yellow Air Hose 20Bar Wrapped Surface
| Code | I.D.(mm) | O.D.(mm) | W.P.(Bar) | B.P.(Bar) | Max.Length(m) |
| 1004000 | 10 | 17 | 20 | 60 | 61 |
| 1004001 | 13 | 21 | 20 | 60 | 61 |
| 1004002 | 16 | 25 | 20 | 60 | 61 |
| 1004003 | 19 | 27 | 20 | 60 | 61 |
| 1004004 | 25 | 36 | 20 | 60 | 61 |
| 1004005 | 32 | 44 | 20 | 60 | 61 |
| 1004006 | 38 | 50 | 20 | 60 | 61 |
| 1004007 | 51 | 63 | 20 | 60 | 61 |
| 1004008 | 63 | 79 | 20 | 60 | 61 |
| 1004009 | 76 | 92 | 20 | 60 | 61 |
| 1004010 | 102 | 118 | 20 | 60 | 61 |
