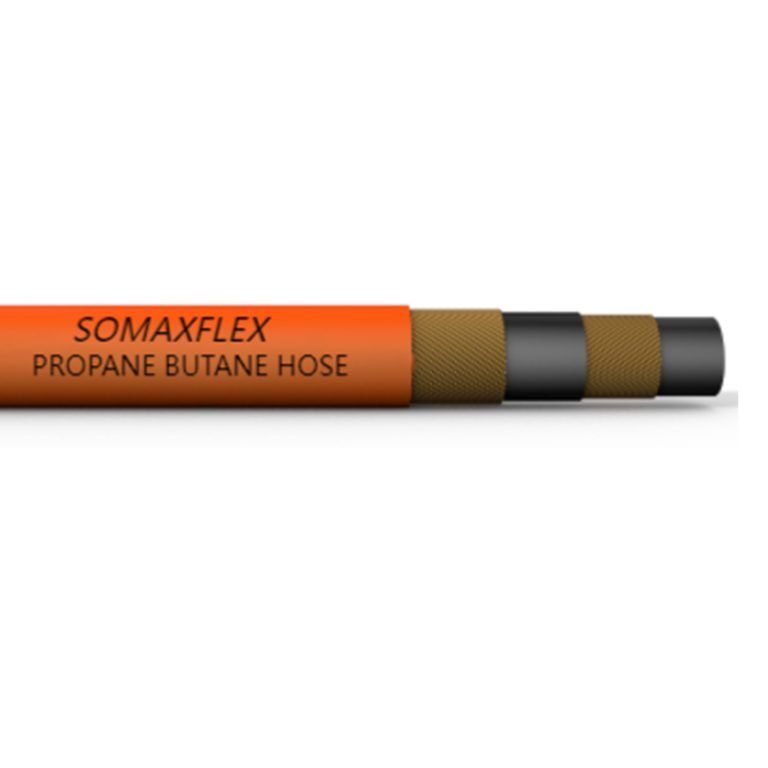

Application: A flexible hose for use with commercial propane and commercial butane and mixtures thereof in the vapour phase, for connection of appliances from pressurized gas container to a regulating device,pressurized gas container to an appliance, regulating device to an appliance and regulating device to installation pipework.
Standard/approval: EN 16436-1:2014
Notice:
ATTENTION: It is vital to be aware of the working pressure. Fluted cover available on request. GPBD does not apply for welding purposes (see EN ISO 3821,EN1327), propulsion purposes and LPG transfer purposes (see EN1762).
Temperature range:-30°C / +70°C.
Safety factor:3 : 1
Tube:NBR, black, smooth.
Reinforcement:Textile spiral.
Cover:EPDM, orange, smooth.
| Code | I.D. | Wall Width | O.D. | W.P. | Number of Inserts | Bending Radius | Weight Approx. | Max.Length | |
| mm | inch | mm | mm | bar | (min.) in mm | kg/m | m/roll | ||
| 5002000 | 4.0 | 3/16 | 3.5 | 11.0 | 10 | 2 | 45 | 0.10 | 50 |
| 5002001 | 4.0 | 3/16 | 4.0 | 12.0 | 30 | 2 | 45 | 0.15 | 50 |
| 5002002 | 6.3 | 1/4 | 3.5 | 13.3 | 10 | 2 | 68 | 0.13 | 50 |
| 5002003 | 6.3 | 1/4 | 5.0 | 16.3 | 30 | 2 | 68 | 0.23 | 50 |
| 5002004 | 9.0 | 3/8 | 3.5 | 16.0 | 10 | 2 | 95 | 0.17 | 50 |
| 5002005 | 10.0 | 3/8 | 5.0 | 20.0 | 10 | 2 | 106 | 0.30 | 50 |
