Characteristics
Application: Excellent flexible hose for suction and discharge of hot water, even light acid, suitable for application in chemical industries, weather and heat resistant wrapped cover.
Working Temperature: from -40’C to +120’C
Branding: Customized brand and logo, Transfer tape or Embossed marking
Available upon request:
Different diameters 2) Different hose cover color 3) Different working pressure 4) Corrugated cover
Mandrel built hard wall hose for suction and discharge of hot water, even slightly acidic and non corrosive fluids in numerous applications in chemical industries.

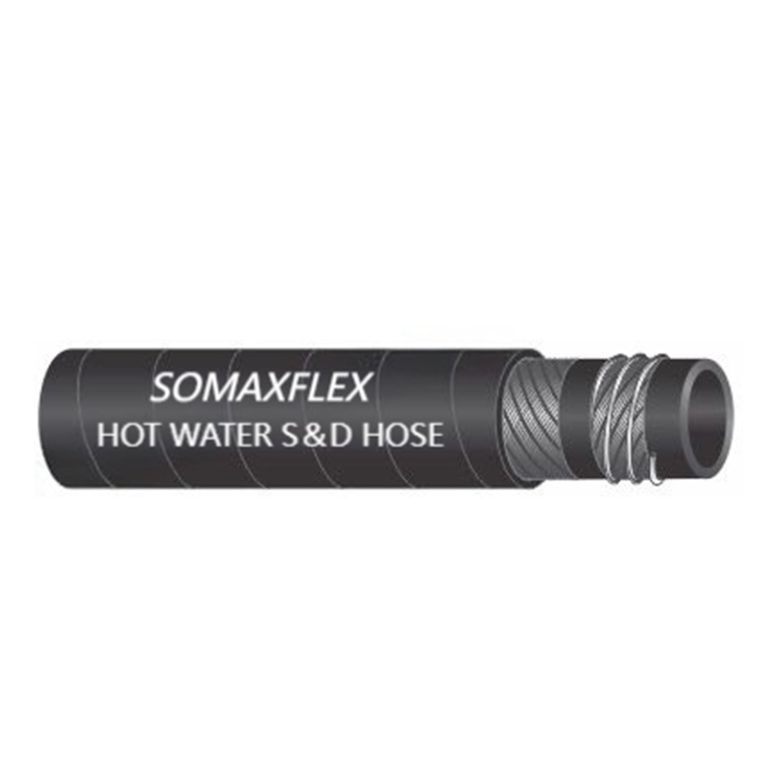

Construction:
Tube: Smooth black EPDM Rubber
Reinforcement: High strength synthetic cord yarn with helix wire
Cover: Black smooth wrapped finish EPDM rubber, heat, weathering and ozone resistant
| Code | I.D. | O.D. | W.P. | B.P. | Max.Length | |||
| mm | inch | mm | bar | psi | bar | psi | m/roll | |
| 4002000 | 19 | 3/4″ | 29 | 10 | 150 | 30 | 450 | 60 |
| 4002001 | 25 | 1″ | 36 | 10 | 150 | 30 | 450 | 60 |
| 4002002 | 32 | 1-1/4″ | 43.5 | 10 | 150 | 30 | 450 | 60 |
| 4002003 | 38 | 1-1/2″ | 49 | 10 | 150 | 30 | 450 | 60 |
| 4002004 | 51 | 2″ | 63 | 10 | 150 | 30 | 450 | 60 |
| 4002005 | 64 | 2-1/2″ | 78 | 10 | 150 | 30 | 450 | 60 |
| 4002006 | 76 | 3″ | 91 | 10 | 150 | 30 | 450 | 60 |
| 4002007 | 102 | 4″ | 120 | 10 | 150 | 30 | 450 | 60 |
| 4002008 | 127 | 5″ | 145.5 | 10 | 150 | 30 | 450 | 20 |
| 4002009 | 152 | 6″ | 174 | 10 | 150 | 30 | 450 | 20 |
| 4002010 | 203 | 8″ | 225.5 | 10 | 150 | 30 | 450 | 10 |
