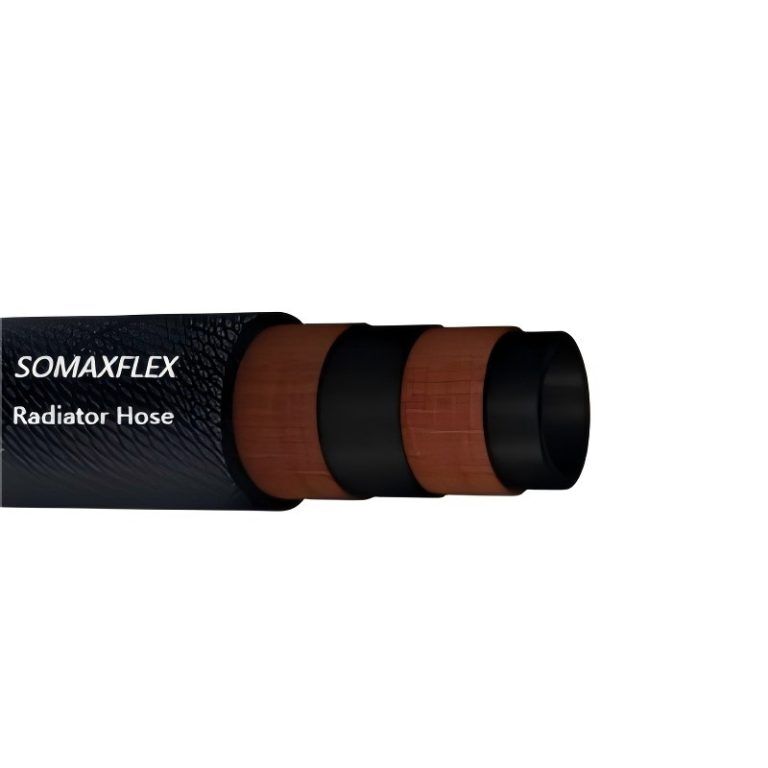

Construction:
Tube:black EPDM
Reinforcement: high tensile textile cords.
Cover:black EPDM – heat, abrasion and ozone resistant.
Application:Abrasion resistant, weather resistant and zone resistant. It is flexible, light in weight, anti-bending and less distortion.
Temperature:(-40℃ (-40 ℉ )to +121℃ (+250 ℉ )
| Code | I.D. | O.D. | WALL THICKNES | W.P. | Max.Length | ||
| mm | inch | mm | mm | bar | psi | m/roll | |
| 4004000 | 13 | 1/2″ | 21 | 4 | 5 | 75 | 1 |
| 4004001 | 16 | 5/8″ | 24 | 4 | 5 | 75 | 1 |
| 4004002 | 18 | 23/32″ | 26 | 4 | 5 | 75 | 1 |
| 4004003 | 20 | 13/16″ | 28 | 4 | 5 | 75 | 1 |
| 4004004 | 22 | 7/8″ | 30 | 4 | 5 | 75 | 1 |
| 4004005 | 25 | 1″ | 33 | 4 | 5 | 75 | 1 |
| 4004006 | 28 | 1-1/8″ | 36 | 4 | 5 | 75 | 1 |
| 4004007 | 30 | 1-3/16″ | 38 | 4 | 5 | 75 | 1 |
| 4004008 | 32 | 1-1/4″ | 40 | 4 | 5 | 75 | 1 |
| 4004009 | 35 | 1-3/8″ | 43 | 4 | 5 | 75 | 1 |
| 4004010 | 38 | 1-1/2″ | 48 | 5 | 5 | 75 | 1 |
| 4004011 | 40 | 1-9/16″ | 50 | 5 | 5 | 75 | 1 |
| 4004012 | 42 | 1-5/8″ | 52 | 5 | 5 | 75 | 1 |
| 4004013 | 45 | 1-3/4″ | 55 | 5 | 5 | 75 | 1 |
| 4004014 | 48 | 1-7/8″ | 58 | 5 | 5 | 75 | 1 |
| 4004015 | 51 | 2″ | 61 | 5 | 5 | 75 | 1 |
| 4004016 | 55 | 2-1/6″ | 65 | 5 | 5 | 75 | 1 |
| 4004017 | 57 | 2-1/4″ | 67 | 5 | 5 | 75 | 1 |
| 4004018 | 60 | 2-3/8″ | 70 | 5 | 5 | 75 | 1 |
| 4004019 | 63 | 2-1/2″ | 73 | 5 | 5 | 75 | 1 |
| 4004020 | 70 | 2-3/4″ | 80 | 5 | 5 | 75 | 1 |
| 4004021 | 76 | 3″ | 86 | 5 | 5 | 75 | 1 |
| 4004022 | 80 | 3-1/8″ | 90 | 5 | 5 | 75 | 1 |
| 4004023 | 90 | 3-1/2″ | 102 | 6 | 5 | 75 | 1 |
| 4004024 | 102 | 4″ | 114 | 6 | 5 | 75 | 1 |
| 4004025 | 110 | 4-5/16″ | 122 | 6 | 5 | 75 | 1 |
