Sizes: 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 1-1/4″, 1-1/2″
Application: For the transportation of high pressure air or water liquid
Specification Information:
Material: EPDM with synthetic Rubber
Working pressure: 20bar
Bursting pressure: 60bar
Reinforcement: 1 or 2 layer of fiber braid
Color: Black,grey,yellow,red,blue,white
Surface: smooth Standard ISO 2398; BS2050
Working temp. -40℃~121℃

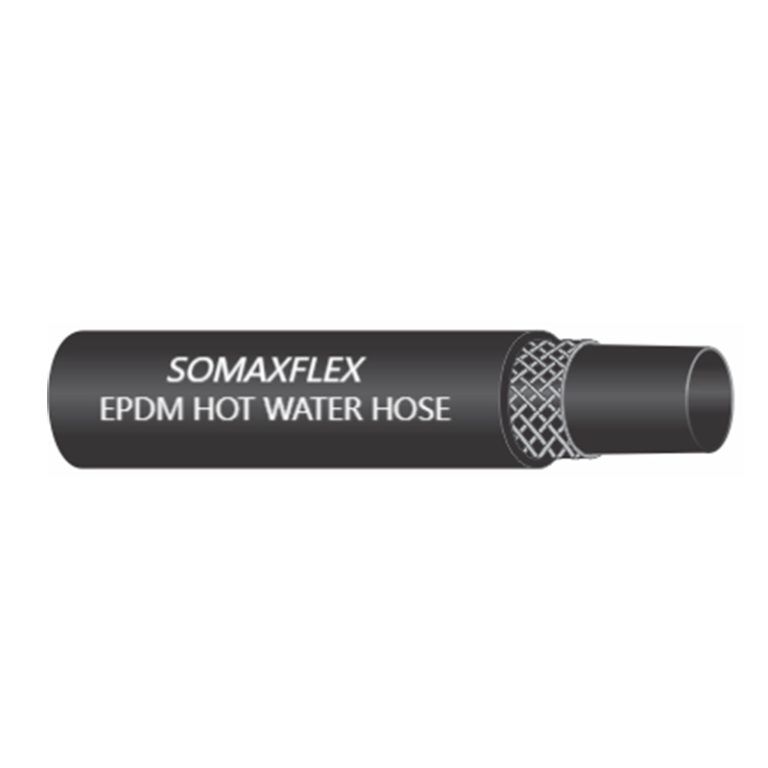

EPDM Hot Water Hose(Smooth surface; Fiber braid)
| Code | I.D. | O.D. | W.P. | B.P. | REINFORCE
LAYER |
WEIGHT | Max.Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m/roll | ||
| 4003000 | 4.8 | 3/16″ | 11.5 | 20 | 300 | 60 | 900 | 1 | 0.15 | 100 |
| 4003001 | 6.4 | 1/4″ | 16 | 20 | 300 | 60 | 900 | 1 | 0.18 | 100 |
| 4003002 | 7.9 | 5/16″ | 15 | 20 | 300 | 60 | 900 | 1 | 0.22 | 100 |
| 4003003 | 9.5 | 3/8″ | 19.1 | 20 | 300 | 60 | 900 | 1 | 0.27 | 100 |
| 4003004 | 12.7 | 1/2″ | 23.1 | 20 | 300 | 60 | 900 | 1 | 0.4 | 100 |
| 4003005 | 15.9 | 5/8″ | 24.5 | 20 | 300 | 60 | 900 | 1 | 0.5 | 100 |
| 4003006 | 19.1 | 3/4″ | 29 | 20 | 300 | 60 | 900 | 1 | 0.75 | 100 |
| 4003007 | 19.1 | 3/4″ | 30 | 20 | 300 | 60 | 900 | 2 | 0.8 | 100 |
| 4003008 | 25.4 | 1″ | 36.1 | 20 | 300 | 60 | 900 | 1 | 0.95 | 100 |
| 4003009 | 25.4 | 1″ | 36.1 | 20 | 300 | 60 | 900 | 2 | 0.95 | 100 |
| 4003010 | 31.8 | 1-1/4″ | 44.5 | 20 | 300 | 60 | 900 | 2 | 0.7 | 50 |
| 4003011 | 38.1 | 1-1/2″ | 54 | 20 | 300 | 60 | 900 | 2 | 0.85 | 50 |
