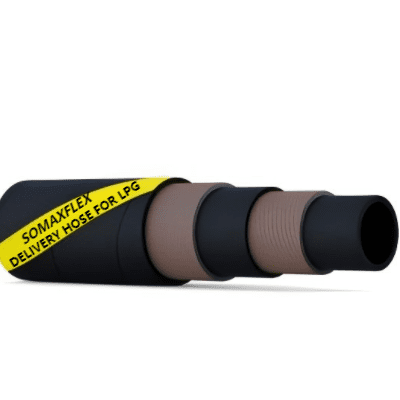

Tube: Black,smooth NBR rubber compound. Conductive
Reinforcement: High strength synthetic plies
Cover:Black,smooth,pin pricked,fire proof and antistatic(R<106Ohm/m),cloth impression CR rubber compound,resistant to oils,abrasion and weathering
Application:Delivery hose for LPG
Temperature: -22°F to +158°F
Specifications: EN 1762
| Code | Normunal Diameter | Outside Diameter | Weight in Air Empty(kg)
Weight in Air full of Sea Water(kg) |
Minimum bending radius | |||
| mm | Body | End | 9.1m(30ft) | 10.7m(35ft) | 12.2m(40ft) | m | |
| 5004000 | 150(6″) | 430 | 485 | 852 | 963 | 1067 | 0.9 |
| 1021 | 1162 | 1294 | |||||
| 5004001 | 200(8″) | 515 | 575 | 1114 | 1259 | 1396 | 1.2 |
| 1410 | 1607 | 1793 | |||||
| 5004002 | 250(10″) | 600 | 675 | 1476 | 4667 | 1847 | 1.5 |
| 1931 | 2201 | 2456 | |||||
| 5004003 | 300(12″) | 670 | 745 | 1822 | 8059 | 2281 | 1.8 |
| 2490 | 2844 | 3176 | |||||
| 5004004 | 400(16″) | 825 | 850 | 2542 | 2877 | 3191 | 2.4 |
| 3628 | 4154 | 4647 | |||||
| 5004005 | 500(20″) | 965 | 1000 | 3273 | 3712 | 4124 | 3 |
| 4996 | 5738 | 6434 | |||||
