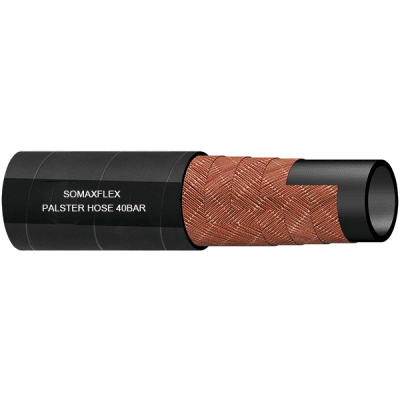

Plaster&Grout Spraying Hose Beton 40Bar
Tube:Abrasion resistant antistatic natural rubber.
Reinforcement:High tensile synthetic textile and antistatic copper wire.
Cover:Abrasion,Ozone and Weather resistant Pin-Pricked Special Synthetic Rubber
Temperature:-40’C to +7o’C
Marking:SOMAXFLEX PLASTER & GROUT SPRAYING HOSE W.P.40BAR(580PSI)
Grout&Plaster Hose W.P 40Bar
High pressure hose for plaster spraying and mortar injection machines
| Code | ID(Inch) | ID(mm) | OD(mm) | W.P.(Bar) | B.P.(Bar) | Length(m) |
| 6002000 | 3/4” | 19 | 31 | 40 | 120 | 40-61 |
| 6002001 | 1” | 25 | 37 | 40 | 120 | 40-61 |
| 6002002 | 1” | 25 | 38 | 40 | 120 | 40-61 |
| 6002003 | 1-3/16” | 30 | 44 | 40 | 120 | 40-61 |
| 6002004 | 1-1/4” | 32 | 46 | 40 | 120 | 40-61 |
| 6002005 | 1-3/8” | 35 | 49 | 40 | 120 | 40-61 |
| 6002006 | 1-1/2” | 38 | 54 | 40 | 120 | 40-61 |
| 6002007 | 1-3/4” | 45 | 61 | 40 | 120 | 40-61 |
| 6002008 | 2” | 51 | 68 | 40 | 120 | 40-61 |
| 6002009 | 2-3/8” | 60 | 80 | 40 | 120 | 40-61 |
| 6002010 | 2-1/2” | 63.5 | 83.5 | 40 | 120 | 40-61 |
| 6002011 | 2-5/8” | 65 | 85 | 40 | 120 | 40-61 |
| 6002012 | 2-3/4” | 70 | 90 | 40 | 120 | 40-61 |
| 6002013 | 3” | 76.2 | 96.2 | 40 | 120 | 40-61 |
| 6002014 | 4” | 101.6 | 122 | 40 | 120 | 40-61 |
| 6002015 | 5” | 127 | 155 | 40 | 120 | 40-61 |
